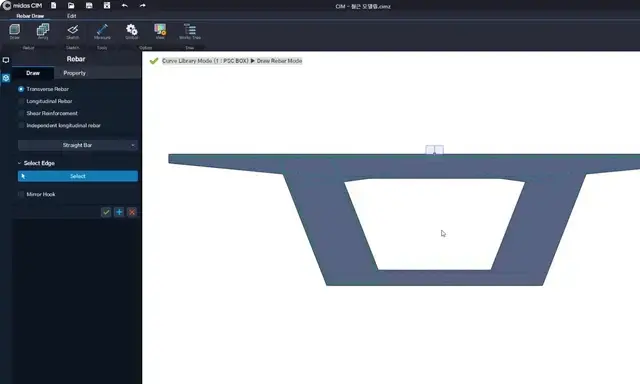

In MIDAS CIM, rebar modeling is done in a way that represents rebars in a 2D environment, similar to actual design practices and arranges them in the 3D model. This approach allows for modeling structural rebar components such as main rebars, distribution rebars, and shear rebars, as well as considerations for elements like hooks, splicing of rebars, and couplers. MIDAS CIM efficiently handles rebar objects only at the reference level, while the arranged rebars are treated graphically, ensuring that the model's speed and performance are not compromised even for complex rebar arrangements.

Subsoil Modeling Function Without Reverse Phenomenon

World-Class Slope Modeling Function

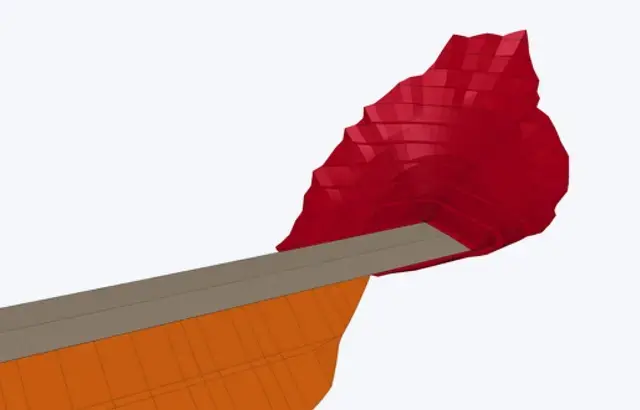

MIDAS CIM can automatically generate appropriate cut/fill slope shapes by inputting slope gradients and widths of slopes and berms, considering changes in adjacent slope berms, and addressing various practical situations where the number of berms between adjacent slopes may vary. It helps create the most suitable slope shapes for different practical scenarios.

Structural Shape Changes Based on Alignment

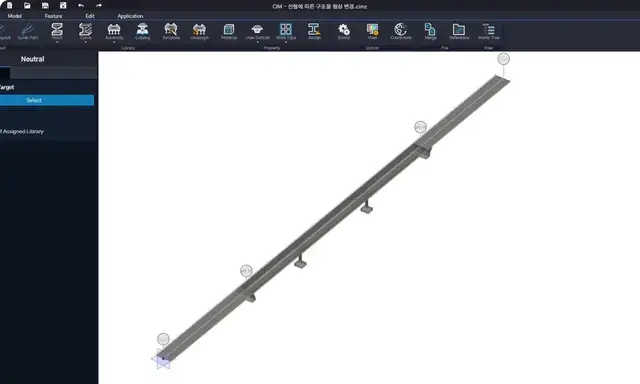

MIDAS CIM, which generates 3D models based on alignments, allows for easy shape changes in structures according to alignment variations. By creating a library in linear forms, you can assign it to alignments, and the library adapts to the alignment information, making it easy to complete the models of complex civil structures. By building an Assembly Unit library, such as bridges, and placing it on alignments created in the Base Mode, you can model various structures by applying skew and superelevation values. Furthermore, when the alignment changes, the model's shape, drawings, quantities, and analysis models are all updated.

Smart Templates and Various
Pre-defined Libraries

MIDAS CIM provides various smart templates and pre-defined libraries for efficient work. Smart Templates are convenient functions for civil and structural designers. Simple inputs such as span, member dimensions, tendon information, and cable quantities automatically generate 3D information models at the preliminary design level. Six templates are provided, and libraries are available in the product's catalog. Standard BIM libraries provided on the Korea Institute of Civil Engineering and Building Technology (KICT) website are compatible with CIM, allowing smooth utilization. Libraries include unit structures for various bridge components, retaining walls, abutments, piers, and common objects used in civil engineering.

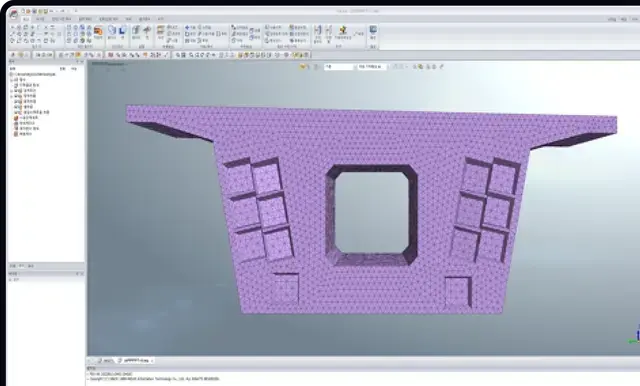

Integration with FEA NX and Detailed Analysis Models

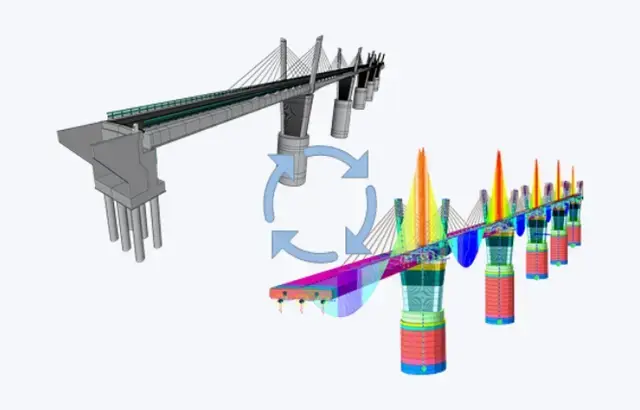

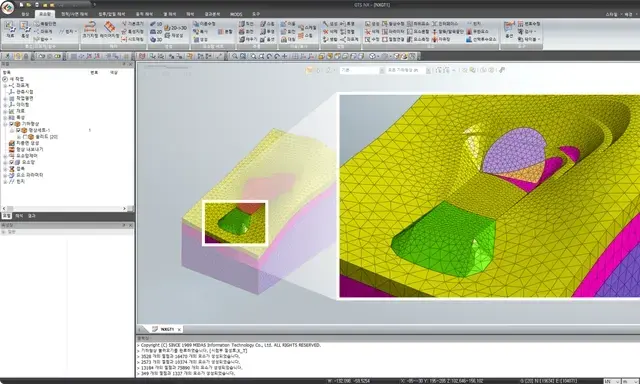

Integration with GTS NX and Ground Model
